IMPAKTOR 1100
Performance. Control. Efficiency. The evolution of recycling. Built for professionals, the 1100 doesn't just shred; it answers the toughest material demands with 350,000 Nm of torque and a stoic silence that commands respect.
Throughput
Commercial waste • 32 - 65 t/h
Aluminum • 20 - 39 t/h
White goods • 26 - 52 t/h
Rubber & tires • 17 - 33 t/h
Car bodies & scrap • 12 - 25 t/h
Engine blocks • 20 - 39 t/h
DIMENSIONS
| Design | Track system |
| Length (mm) | 14,000 / 10,200 (Transport) |
| Width (mm) | 2,950 / 2,950 (Transport) |
| Height (mm) | 4,500 / 3,300 (Transport) |
| Total weight (kg) | 38,000 |
DRIVE
| Engine | VOLVO Penta TWD1683VE |
| Emission standard | EU Stage V |
| Power (kW / HP) | 585 / 795 |
| Fuel capacity (l) | 1,040 |
| Gearbox | Bonfiglioli 350,000 Nm |
DISCHARGE BELT
| Discharge height (mm) | 5,500 |
| Width (mm) | 1,400 |
| Includes | Overbelt magnet |
SHREDDING UNIT
| Hopper volume (m³) | 12.50 |
| Shaft length (mm) | 2,500 |
| Shaft diameter (mm) | 840 |
| Weight (kg / cassette) | 6,800 |
| Speed (rpm) | 18 – 52 |
479.000,- €
Request a demonstrationAvailable Shafts

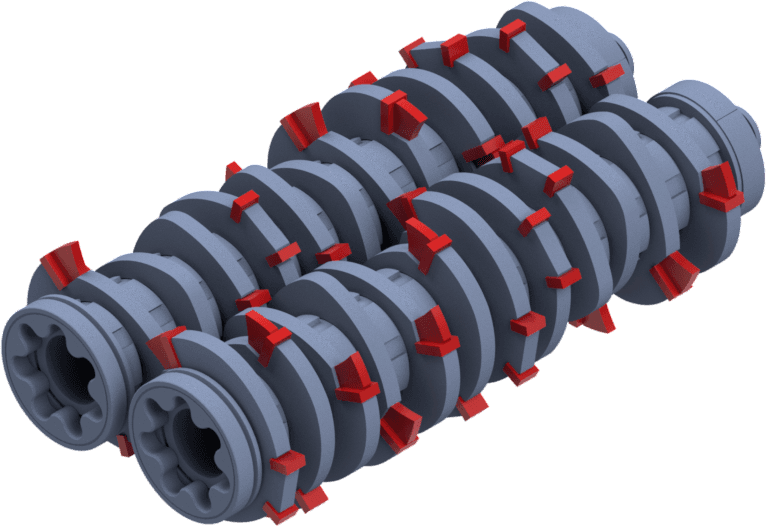

Tangential shaft

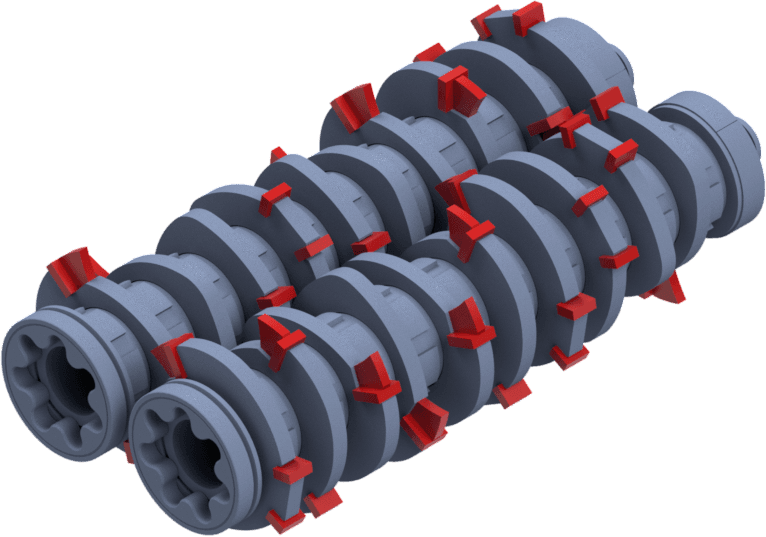

Concrete shaft

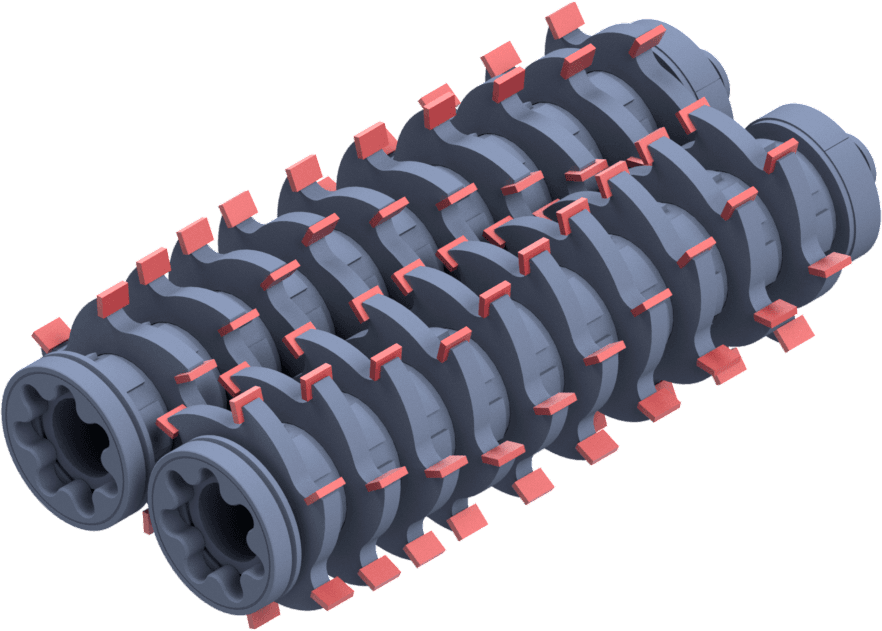

Star shaft
Machine Power in Real Environment
