IMPAKTOR 850
The mid-range powerhouse. Built on the legacy of VZ and Titan series, the Impaktor 850 sets new standards in efficiency with its cooling-flow design and integrated sieve basket system.
Throughput
Old wood • 26 - 52 t/h
Green cuttings / Biomass • 45 - 90 t/h
Commercial waste • 15 - 32 t/h
Trunk wood and roots • 19 - 39 t/h
Paper and cardboard • 19 - 39 t/h
Rubber and old tires • 9 - 19 t/h
In Action
DIMENSIONS
| Version | Track system (Hydraulic suspension) |
| Working Length (mm) | 12,000 |
| Transport Length (mm) | 9,250 |
| Transport Width (mm) | 2,450 |
| Transport Height (mm) | 3,200 |
| Total weight (kg) | 24,000 |
DRIVE
| Engine | CAT C9 |
| Emission standard | Stage V / Tier 4 Final |
| Power (kW / HP) | 340 / 460 |
| Fuel capacity (l) | 1,080 |
| Gearbox | Bonfiglioli |
DISCHARGE BELT
| Discharge height (mm) | 1,000 - 4,500 (Adjustable) |
| Width (mm) | 1,200 |
| Magnet | Overbelt magnet (Longitudinal/Transverse) |
SHREDDING UNIT
| Hopper volume (m³) | 8.0 (Incl. tilting hopper) |
| Shaft length (mm) | 2,200 |
| Shaft diameter (mm) | 680 |
| Cassette weight (kg) | 3,500 |
| Rotation speed (rpm) | 24 – 64 |
| Sieve Basket | Quick-change system included |
299.000,- €
Request a demonstrationAvailable Shafts

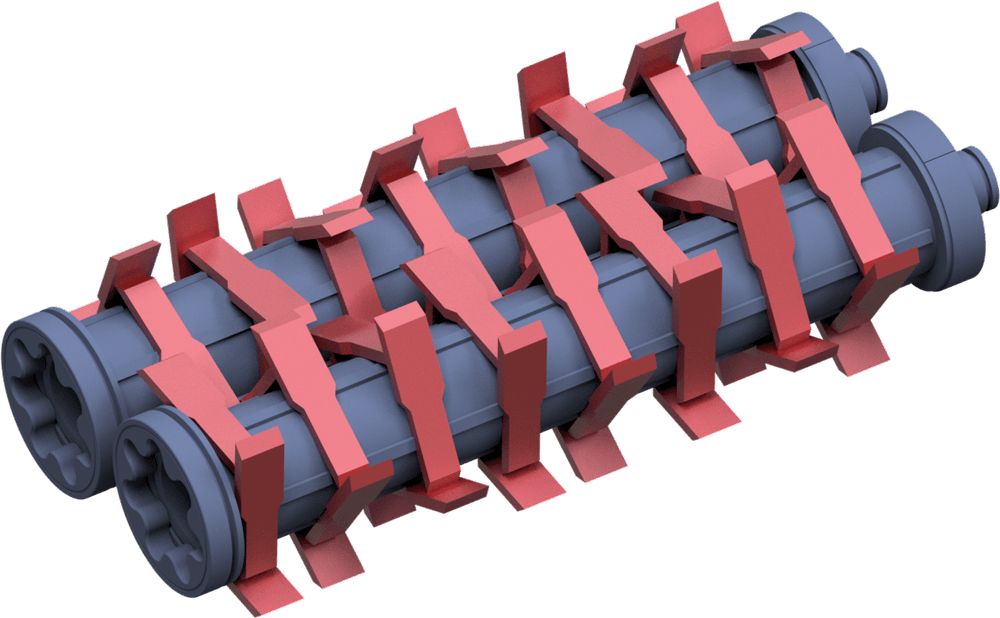

Tangential shafts
Star shafts (4-pieces)

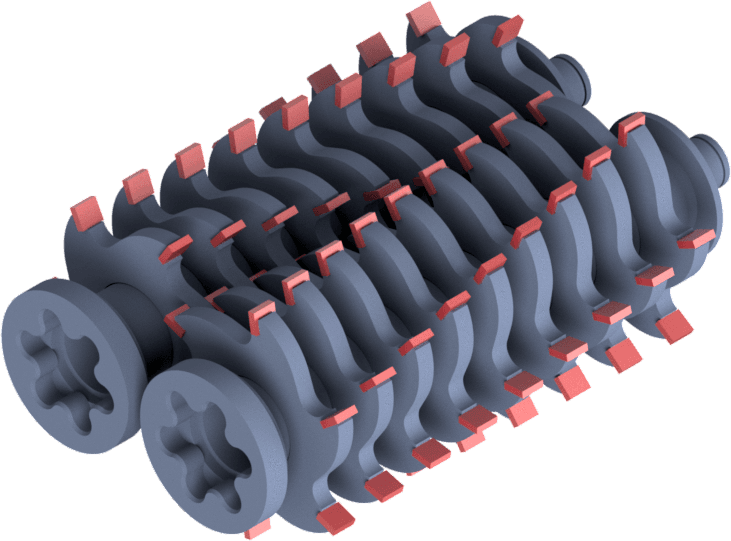

Star shafts (6-pieces)
Machine Power in Real Environment
