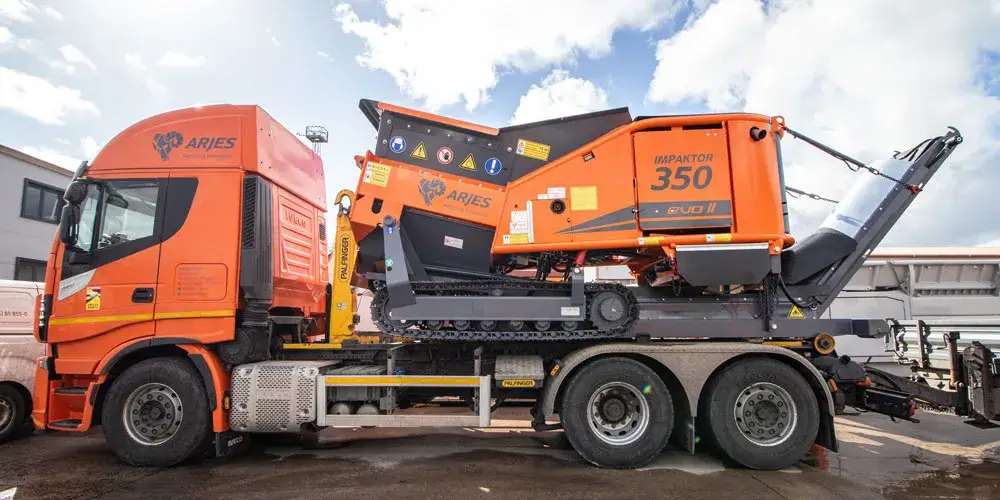

IMPAKTOR 350 EVO II
Compact power evolved. The 350 EVO II combines a powerful Volvo Penta engine with a modular quick-change shaft system, making it the versatile choice for construction debris, wood, and waste.
Throughput
Construction waste • 80 - 100 t/h
Concrete / Asphalt • 60 - 80 t/h
Waste wood • 10 t/h
Biomass • 20 t/h
Waste & Plastics • 12 - 15 t/h
DIMENSIONS
| Version | Track system and hook lift |
| Working Length (mm) | 7,700 |
| Transport Length (mm) | 7,300 |
| Width (mm) | 2,300 |
| Working Height (mm) | 3,900 |
| Transport Height (mm) | 2,550 |
| Total weight (kg) | 13,400 |
DRIVE
| Engine | Volvo Penta TAD 583 VE |
| Emission standard | EU Stage V |
| Power (kW / HP) | 175 / 238 |
| Fuel capacity (l) | 300 |
| Gearbox | Bonfiglioli |
DISCHARGE BELT
| Discharge height (mm) | 3,200 |
| Width (mm) | 800 |
| Included | Overbelt magnet and water sprinkler system |
SHREDDING UNIT
| Hopper volume (m³) | 2.25 |
| Shaft length (mm) | 1,500 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 1,800 |
| Rotation speed (rpm) | 11 – 35 |
169.500,- €
Request a demonstrationAvailable Shafts

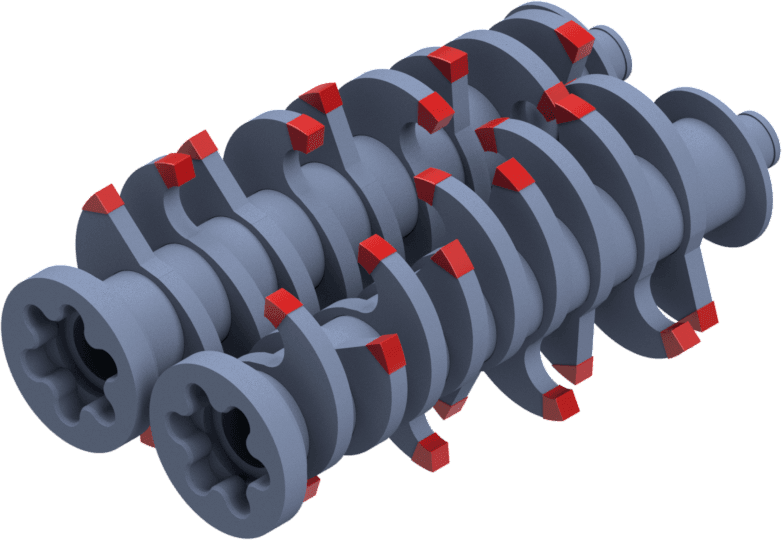

Concrete shafts

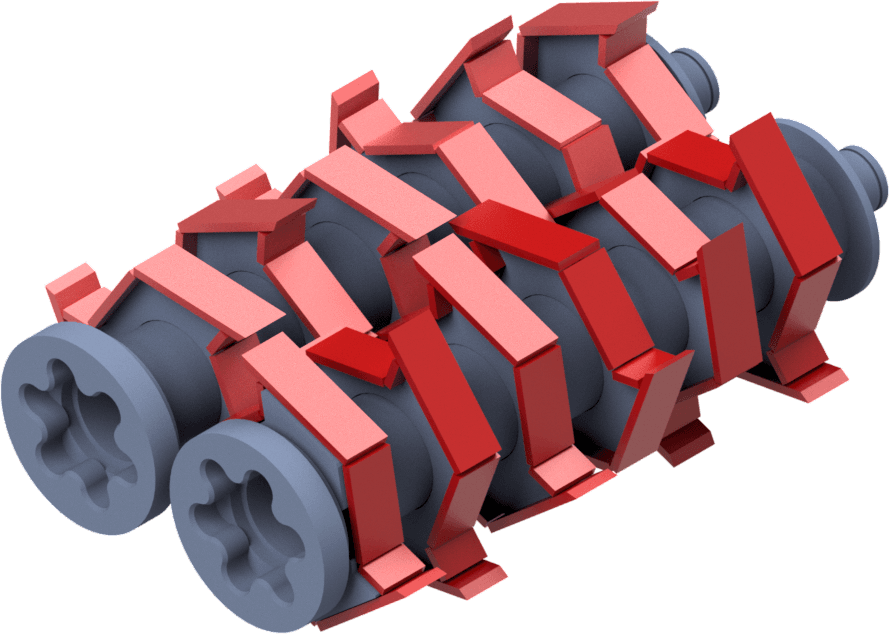

Paddle shafts
Tangential shafts

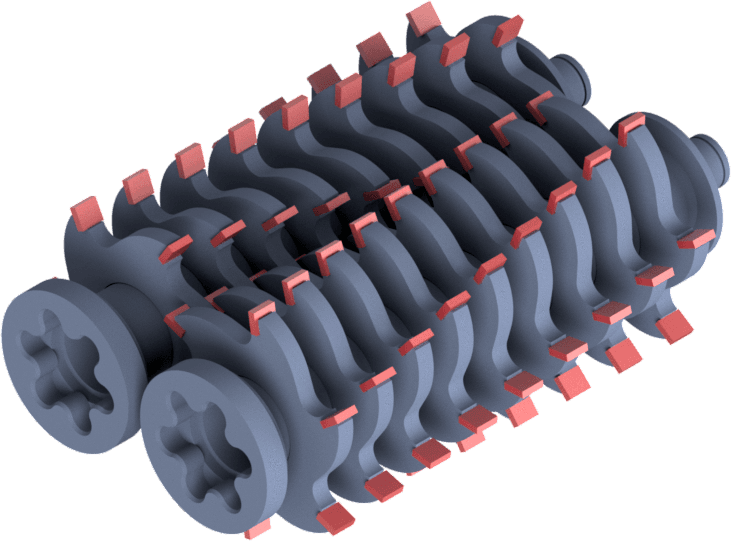

Star shafts
Machine Power in Real Environment
