IMPAKTOR 250 EVO II
The evolution of a legend. With over 1,500 units delivered, the 250 EVO II is the industry standard for compact twin-shaft shredding. It handles everything from construction waste to tires and railway sleepers with unmatched mobility.
Throughput
Construction waste • 80 - 100 t/h
Concrete / Asphalt • 60 - 80 t/h
Waste wood • 10 t/h
Biomass • 20 t/h
Waste & Plastics • 10 - 15 t/h

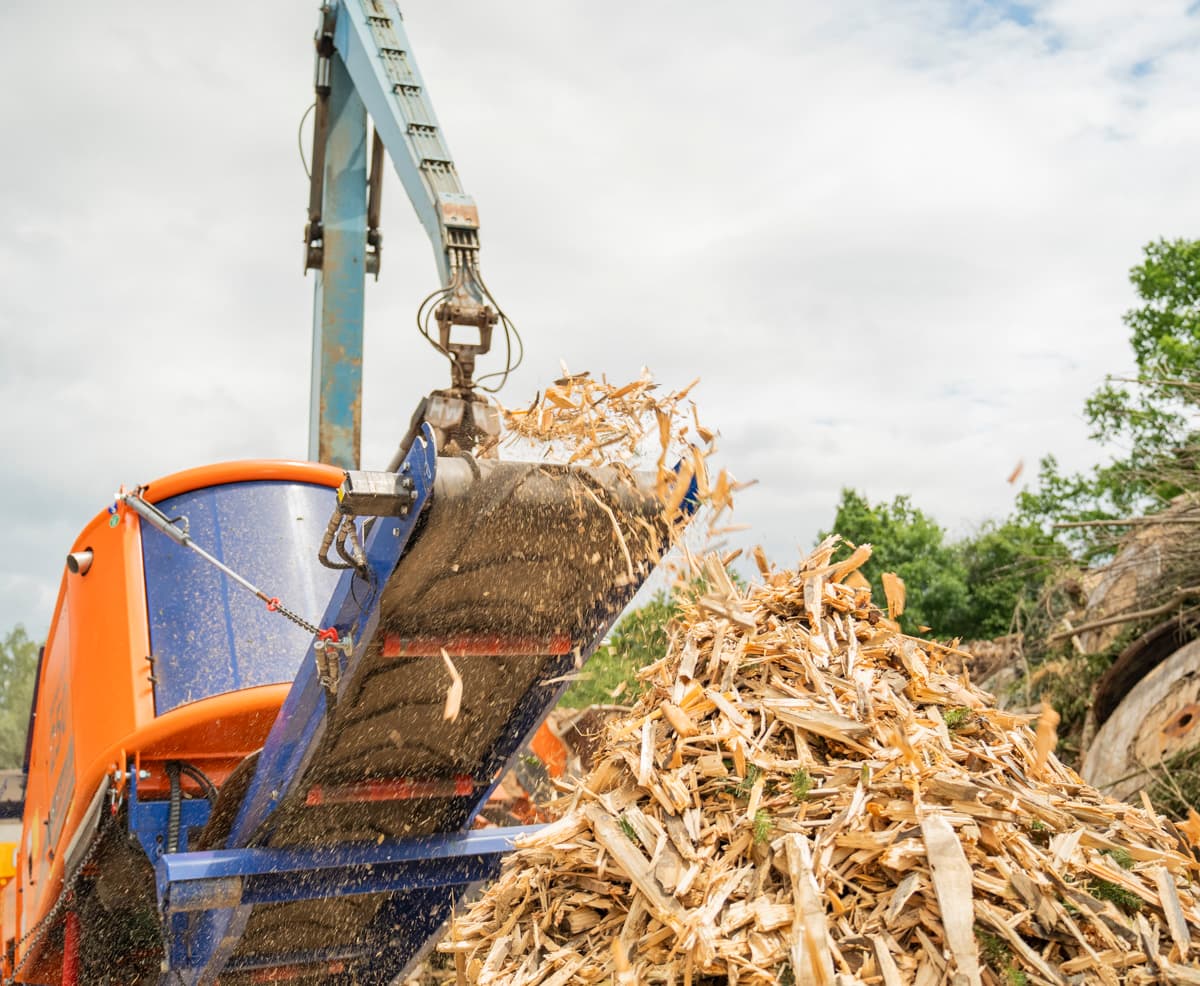

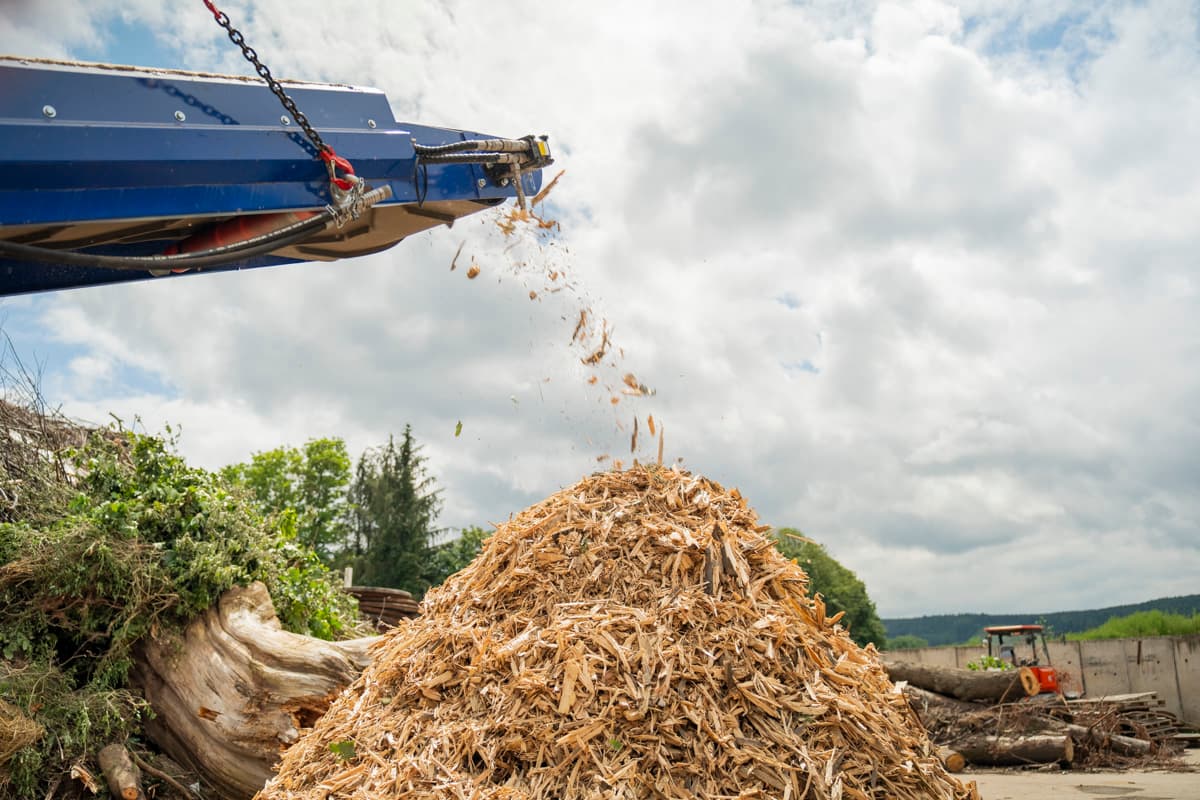

In Action
DIMENSIONS
| Version | Track system and hook lift |
| Working Height (mm) | 3,900 |
| Transport Height (mm) | 2,550 |
| Length (mm) | 7,700 / 7,300 (Transport) |
| Width (mm) | 2,300 / 2,300 (Transport) |
| Total weight (kg) | 13,400 |
DRIVE
| Engine | Volvo Penta TAD 551 VE |
| Emission standard | Stage III A / Stage V |
| Power (kW / HP) | 129 / 175 |
| Fuel capacity (l) | 300 |
| Gearbox | Bonfiglioli |
DISCHARGE BELT
| Discharge height (mm) | 3,200 |
| Width (mm) | 800 |
| Included | Overbelt magnet, discharge container, and water sprinkler system |
SHREDDING UNIT
| Hopper volume (m³) | 2.25 |
| Shaft length (mm) | 1,500 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 1,800 |
| Rotation speed (rpm) | 11 – 35 |
162.500,- €
Request a demonstrationAvailable Shafts
Concrete shafts
Tangential shafts
Paddle shafts
Star shafts
Machine Power in Real Environment
